Harvia Xenio Control - CX30C-U1 For All U1 Combi Heaters Up To 12.5kw

$1,059.30 $1,070.00
By Harvia

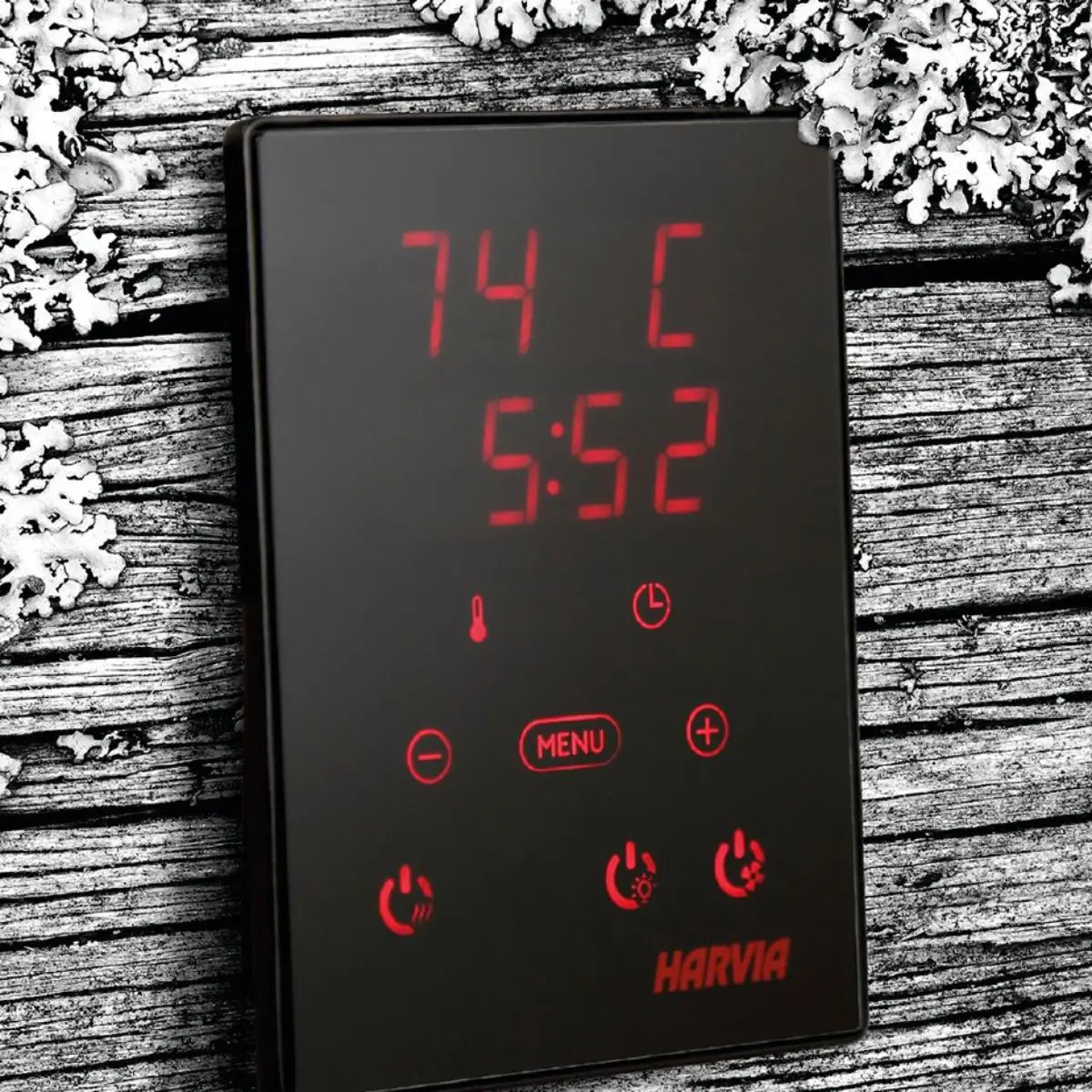

Harvia Xenio CX30C-U1 Digital Control Unit for Combi Sauna Heaters

The Harvia Xenio CX30C-U1 is a sophisticated digital control unit designed for seamless integration with Harvia Combi series sauna heaters operating on 240V single-phase electrical systems. This unit features a sleek touch control panel that enhances the user experience by providing intuitive management of your sauna's heating and lighting functions.

Key Features:

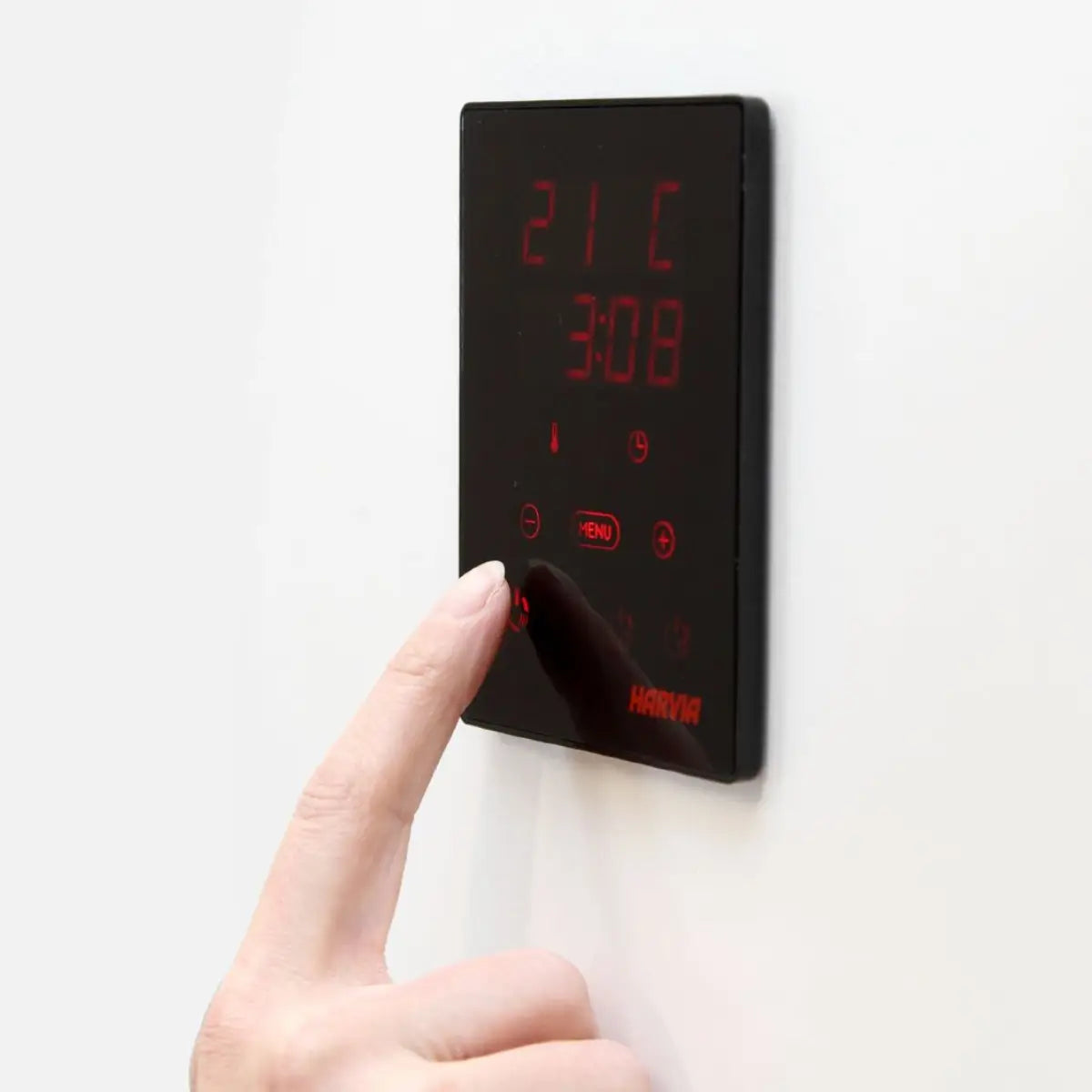

  • Touch Control Panel: Features a modern touch interface for easy adjustment of sauna settings, including temperature and lighting.

  • Heater and Lighting Control: Specifically designed to control Combi model heaters and room lighting, ensuring a comfortable and customizable sauna environment.

  • Timer Functions: Equipped with a 60-minute timer, plus additional delay timers ranging from 10 minutes to 12 hours in 10-minute increments, allowing for flexible sauna session planning.

  • Temperature Display: Offers temperature readings in either Fahrenheit (°F) or Celsius (°C), accommodating user preferences.

  • Extended Connectivity: Includes 13 feet of sensor cable and a 16-foot data cable, facilitating flexible installation options. The control unit can be positioned up to 82 feet away from the sauna room, providing versatility in placement.

Specifications:

  • Model: CX30C-U1

  • Power Supply Voltage: 240V (Single-Phase)

  • Phase: Single-Phase

  • Maximum Output: 12.7 kW

  • Temperature Adjustment Range: 104–194°F (40–90°C)

  • Pre-Setting Time Adjustment Range: 0–12 Hours

  • Width: 3.4"

  • Depth: 1.0"

  • Height: 4.4"

Installation and Compatibility Notes:

  • Installation Location: Suitable for installations both inside and outside the sauna room, offering flexibility based on user preferences and space constraints.

  • Heater Compatibility: Designed exclusively for Harvia Combi series heaters operating at 240V single-phase. It is not compatible with three-phase systems or non-Combi models.

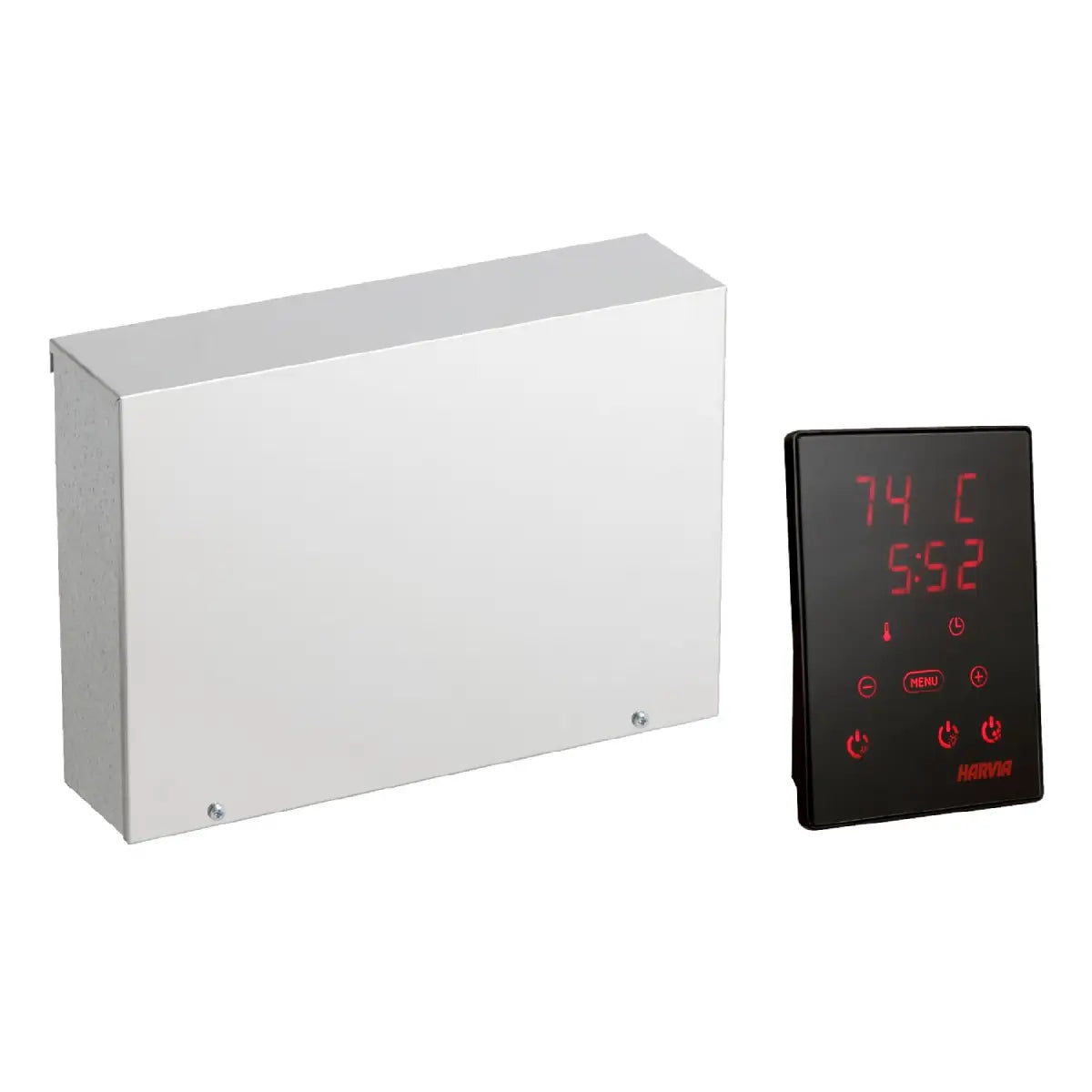

Product Includes:

  • Digital Control Panel

  • Humidity Sensor

  • Power Unit

  • Temperature Sensor

  • Installation and Operation Manual

  • 1-Year Full Warranty

  • 5-Year Service Warranty

Additional Information:

  • Safety Features: Incorporates essential safety features such as overheating protection and a child lock function to ensure safe operation during use.

  • Installation Recommendations: For optimal performance and safety, it is recommended that installation be performed by a licensed electrician familiar with sauna electrical systems.

  • Warranty Details: Comes with a 1-year full warranty covering defects in materials and workmanship, and a 5-year service warranty providing access to authorized service centers for repairs and maintenance.
